AI Functions: Human Detection
APP: XMEYE
Alarm Action: FTP Photo,Email Photo,Local Alarm
Alarm Type: Local Alarm,FTP Photo,Email Photo
App name: Other
Audio: Support Audio Recording (Don't support Two way audio)
Audio Output: no
Brand Name: AZISHN
Certification: CE
Color: WHITE
Color Night Vision: no
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 16.6CM*6.5CM
High Definition: 8.0 Megapixels
High-concerned chemical: None
IP Rating: IP66
IR Distance(m): 30M

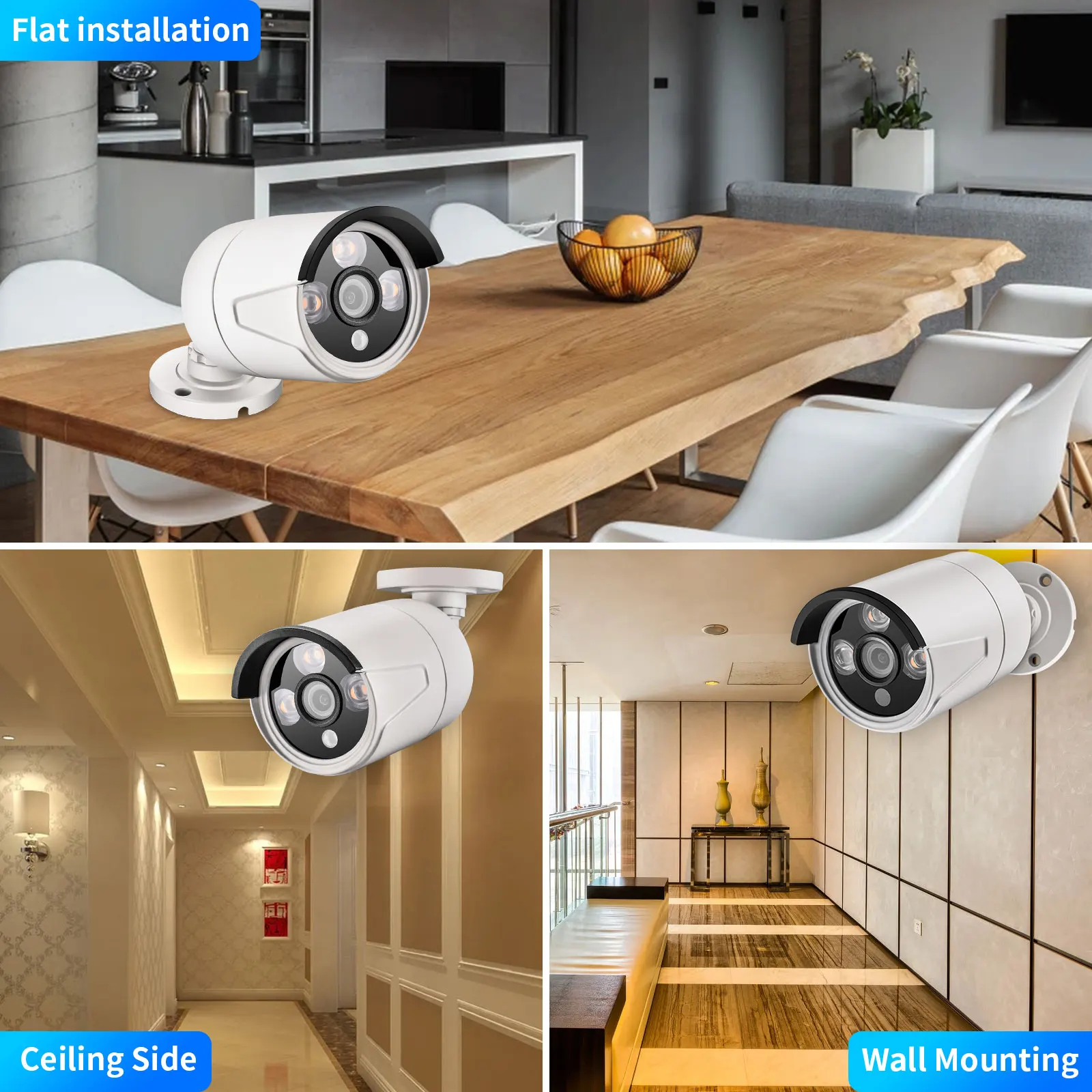

Installation: ceiling
Internal Storage: None
Lens (mm): 8mm,6mm,3.6mm,2.8mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0lux when IR on
Model Number: Z108603W-8M
Operating Temperature: -10°-60°
Optical Zoom: NONE
Origin: Mainland China
Power Consumption(W): 6W
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): 12V/48V
Rechargeable Battery: NONE
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: SmartSens
Shell Material: Metal
Smart home platform: Other
Special Features: Waterproof / Weatherproof

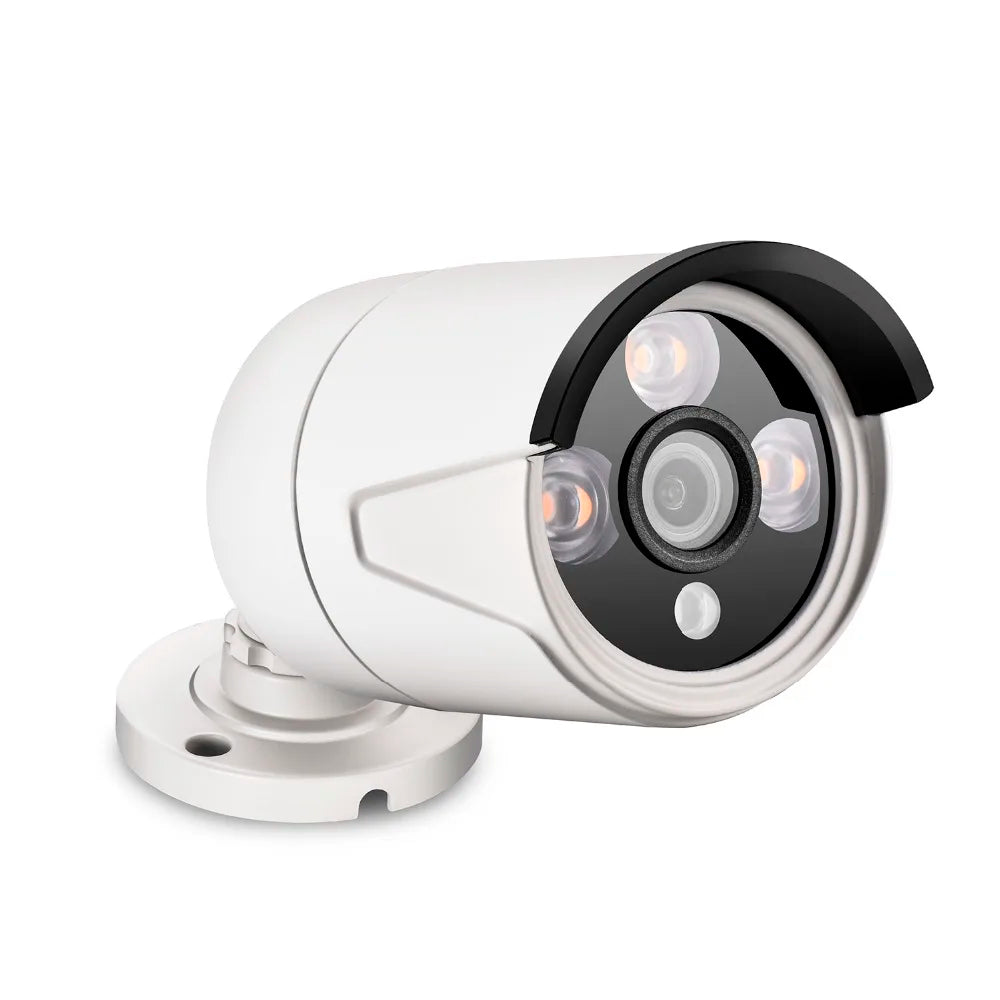

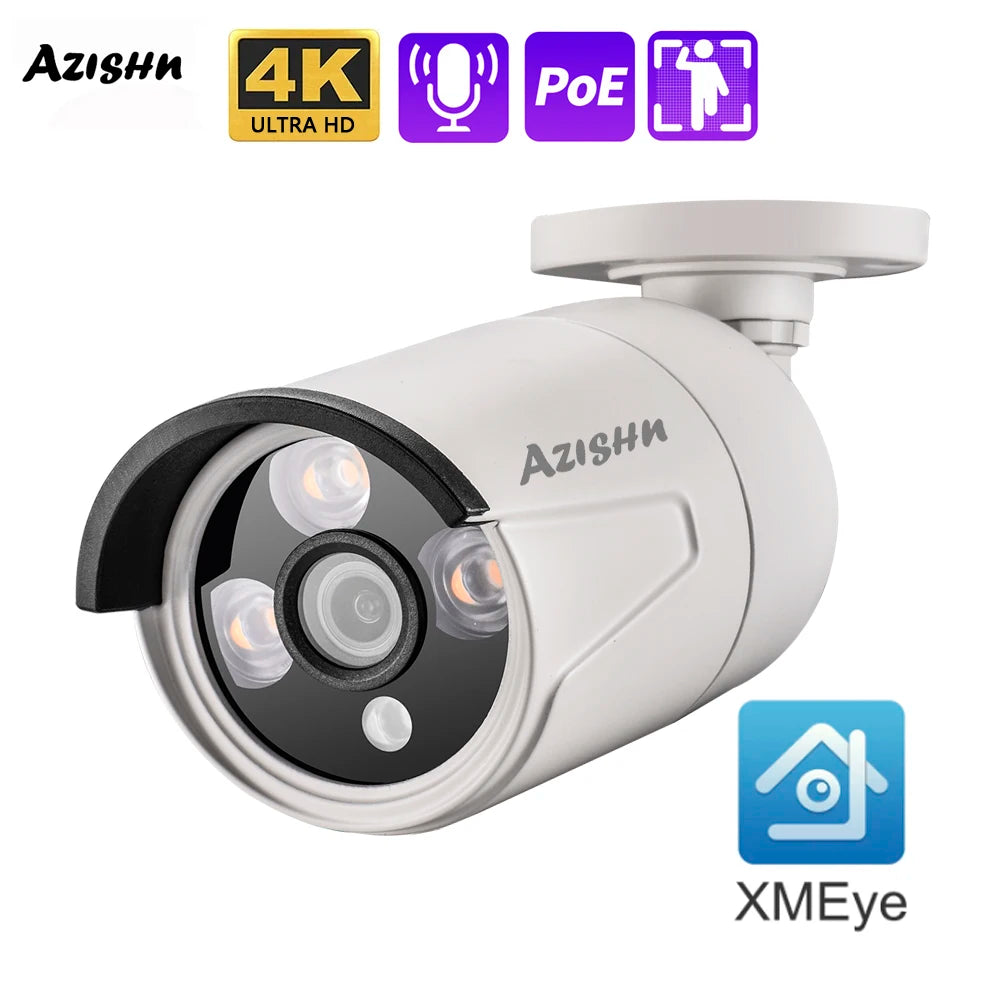

Style: Bullet Camera
Supported Mobile Systems: Windows Mobile,iOS,Android
Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,macOS,Windows XP
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 90°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: None
is_customized: Yes


Features:
1, Support 2D/3D noise reduction, digital wide dynamic;
2, Support ONVLF protocol;can access third-party NVR;
3, Support for mobile phone monitoring (iOS, android)
4, Support Web, CMS, MYEYE platform management software, providing SDK;
5, Support for cloud services, network penetration, alarm information pushed to the phone;
6, Advanced H.265AI /H.265+ (compatible H.264/H.265) Stream, resolution, frame rate, bit rate adjustable
7, Support Day/Night, 10-30m IR Range
8, Outdoor/Indoor Use
9, Lens: 2.8mm/3.6mm/6mm/8mm
10,Audio:Build In Microphone. Support Audio Recording (Don't support Two way audio)
IP CAMERA |
|
System structure |
Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog |
Video compression |
Advanced H.265AI /H.265+ (compatible H.264/H.265) Stream ,AVI;0.1M~6Mpbs variable;1~30f/s variable |
Sensor |
3MP:GK7105V100+1/2.8"SC3239S CMOS 4MP:GK7205V210+1/2.8"SC4239S CMOS 5MP:GK7605V100+1/2.8"SC5239S CMOS 8MP:NT98566+1/2.7"SC8239 CMOS |
Image output |

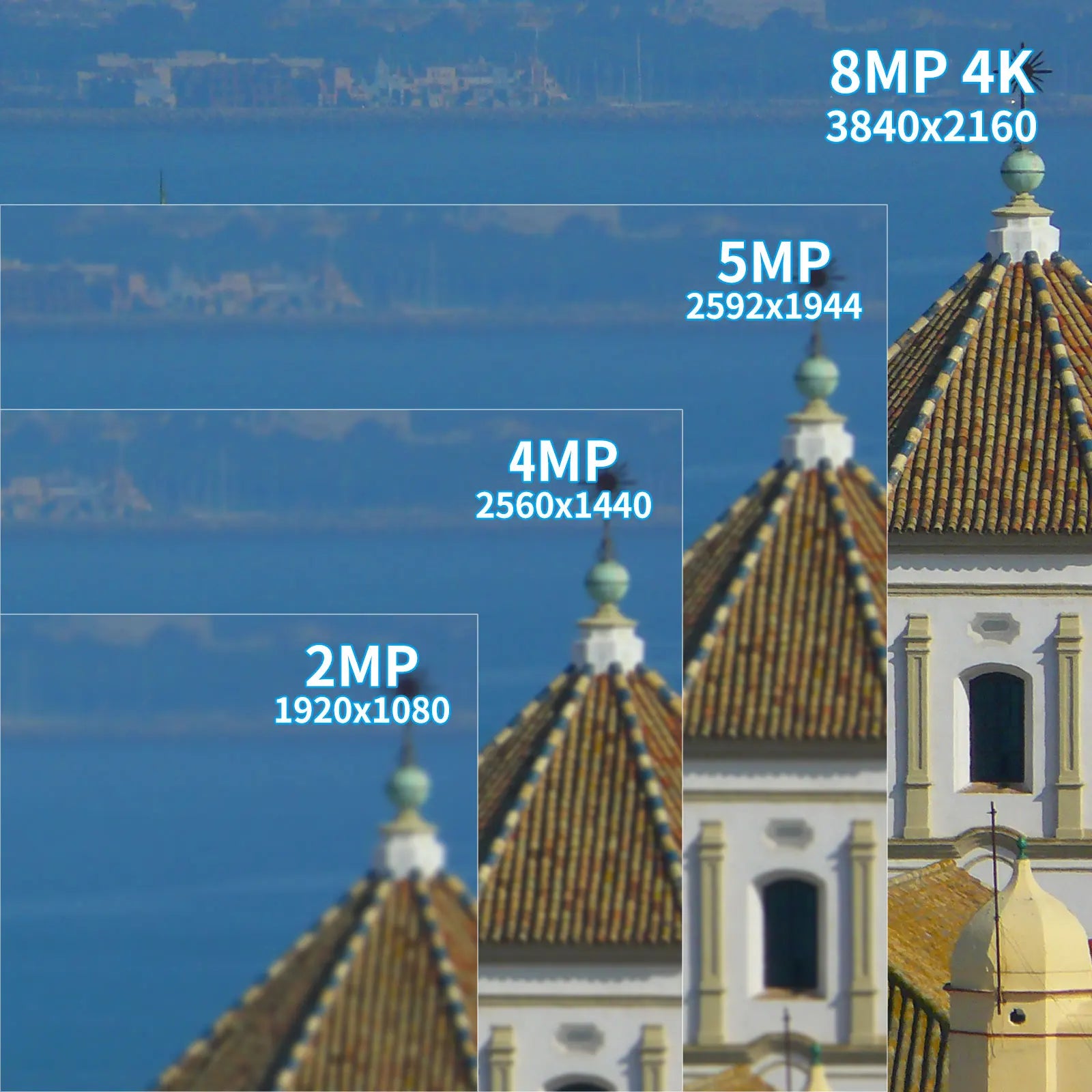

3MP: 2304*1296-25fps;1920*1080-25fps;1280*720-25fps; sub-stream: 704*576-25fps; 4MP:2560*1440@25fps,2304*1296@25fps,1920*1080@25fps;sub-stream:800*448@25fps; 5MP:2880*1616@20fps,2560*1440@25fps,2304*1296@25fps,1920*1080@25fps;sub-stream:800*448@25fps 8MP: 3840*2160@15fps;2880*1616@25fps;2560*1440@25fps; 1920*1080@25fps;sub-stream:800*448@25fps |
lens |
3.6mm/6mm/8mm |
Storage |
Via PC/Mobile Phone/NVR With HDD |
Infrared light |
3pcs array IR leds 30M IR distance |
Wide dynamic |
Support digital |
Network interface |
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
Singal interface |
One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
Auto iris |
No |
SD Card |
Unsupport |
Reliability |
Comprehensive lightning protection, 7 * 24 hours -25~55 degree temperature stable and reliable testing |
Audio |
Build In Microphone. Support Audio Recording (Don't support Two way audio) |
ONVLF |
Support |

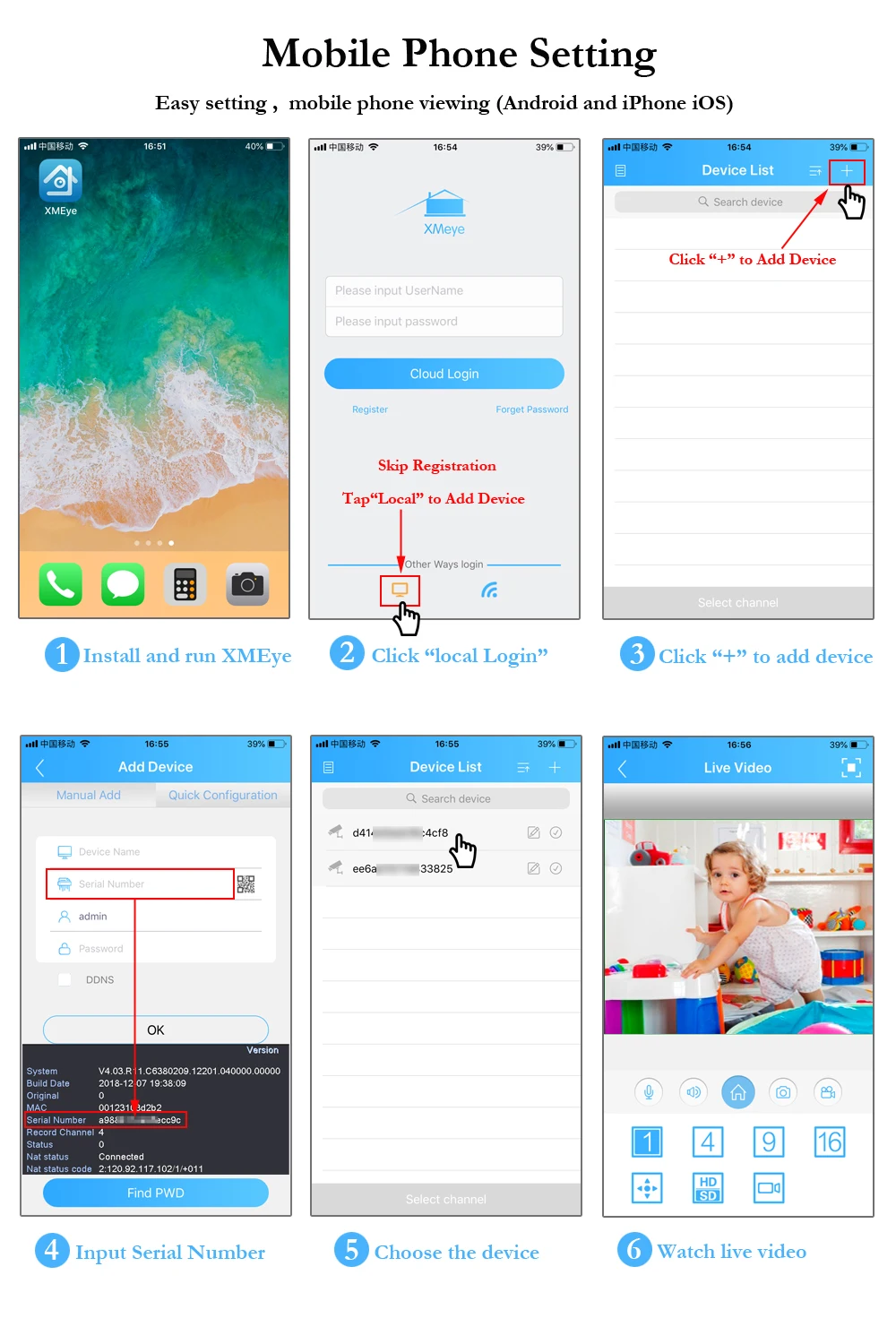

Mobile monitoring |
Support multiple mobile monitoring(iOS,Android) APP"XMEYE" |
Power |
POE48V and DC 12V for optional (Power adapter is not included) |

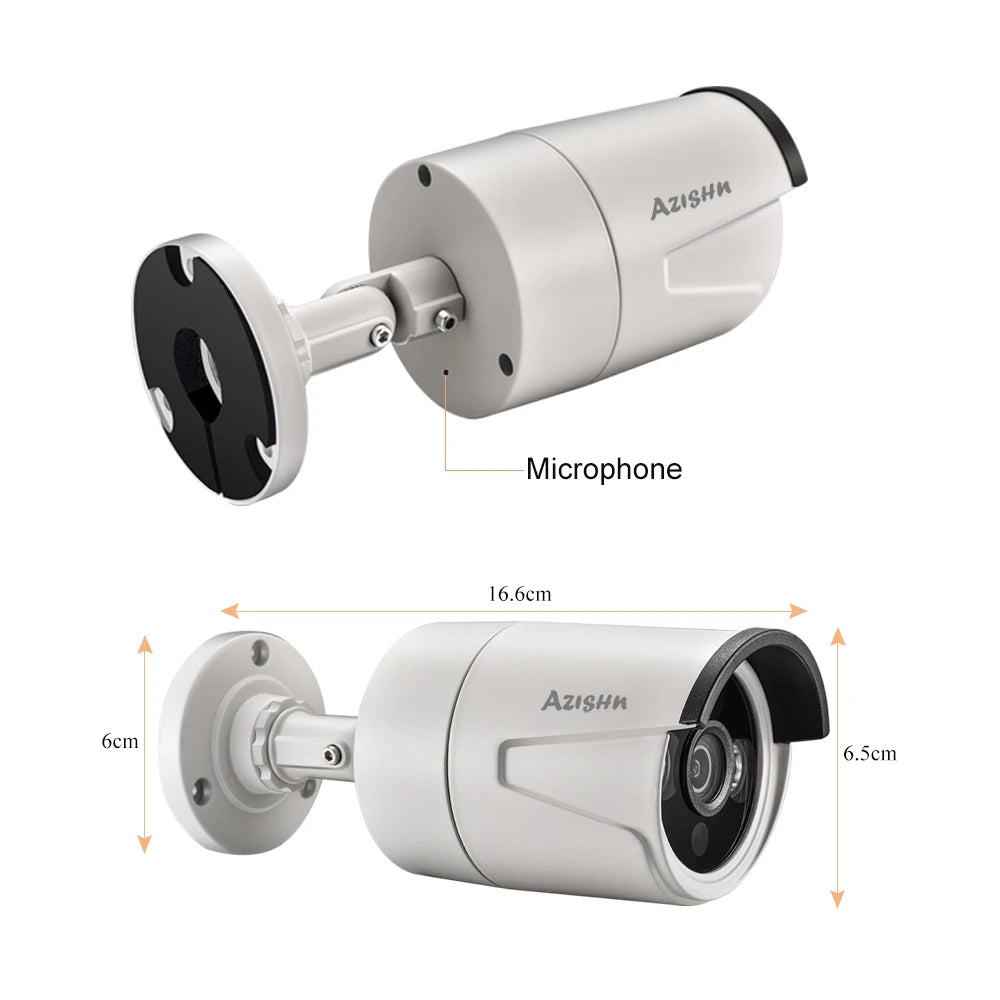

Dimension |
16.6CM*6.5CM |
Housing material |
Metal IP66 Waterproof .Temperature -15°~50°; Humidity 30%-90%RH |

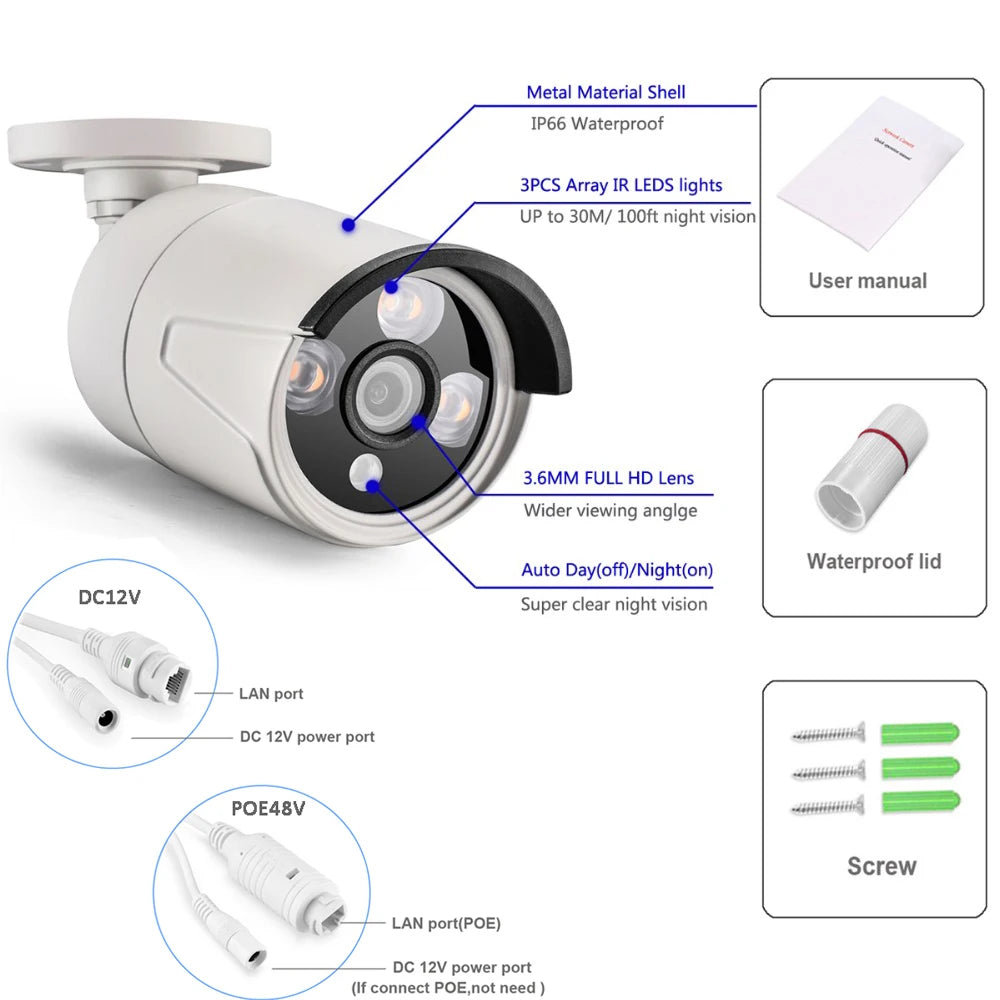

Package included:
1 x IP Camera(Not include adapter)
1 x Use Manual
1 x Waterproof cap of cable
3 x Wall screws
Note:
DC12V CAMERA Version :camera only can Work With DC 12V 1A-2A Power Supply(Adapter not inculded)
POE 48V CAMERA Version:the camera support Poe 48V switch and DC12V adapter !!package not with poe switch
Support Audio Record
Built-in a integrated microphone let you hear the sound around the camera,records what people say,
make it authentic with sound video recording.(Don't support Two way audio)

Motion Detection & Email Alert

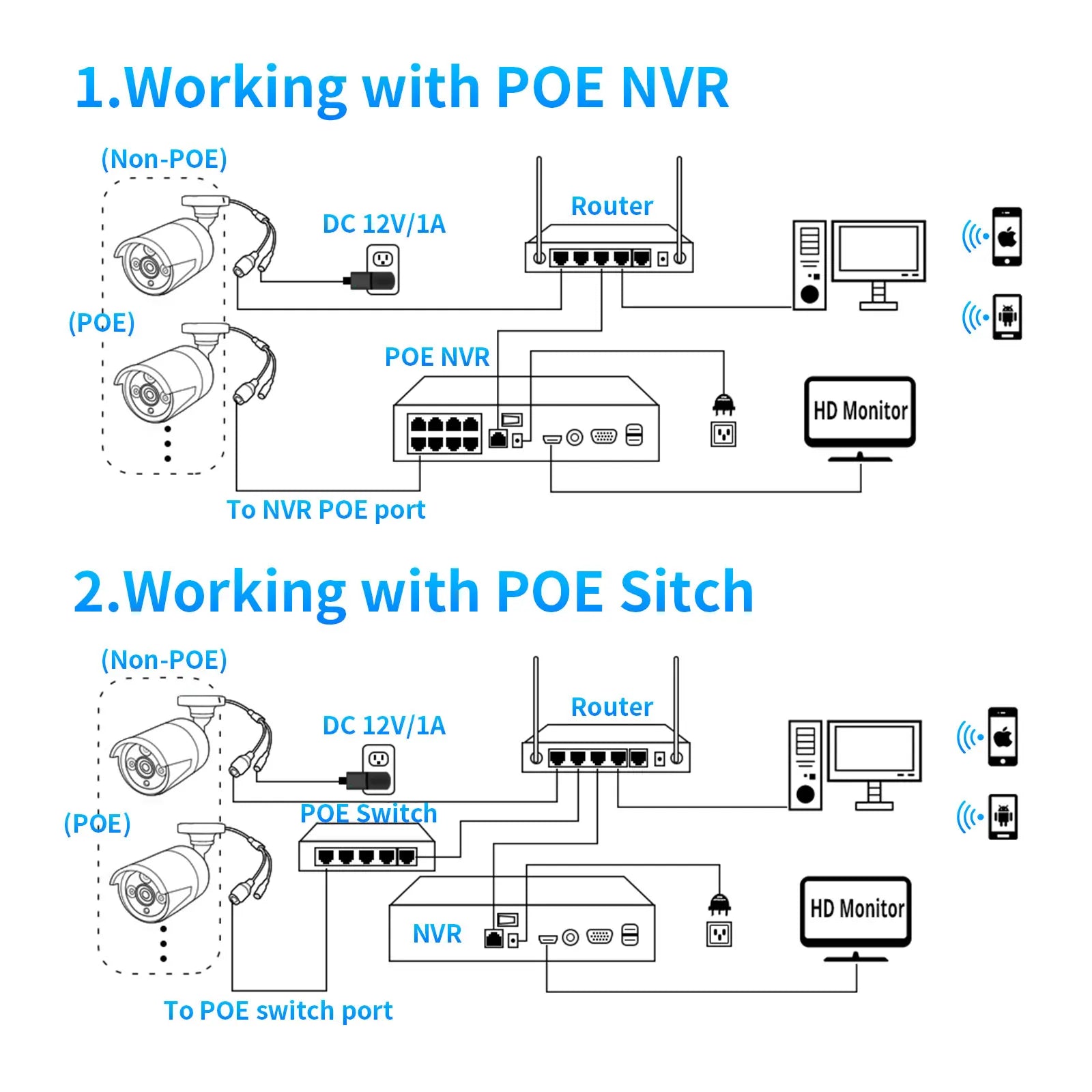

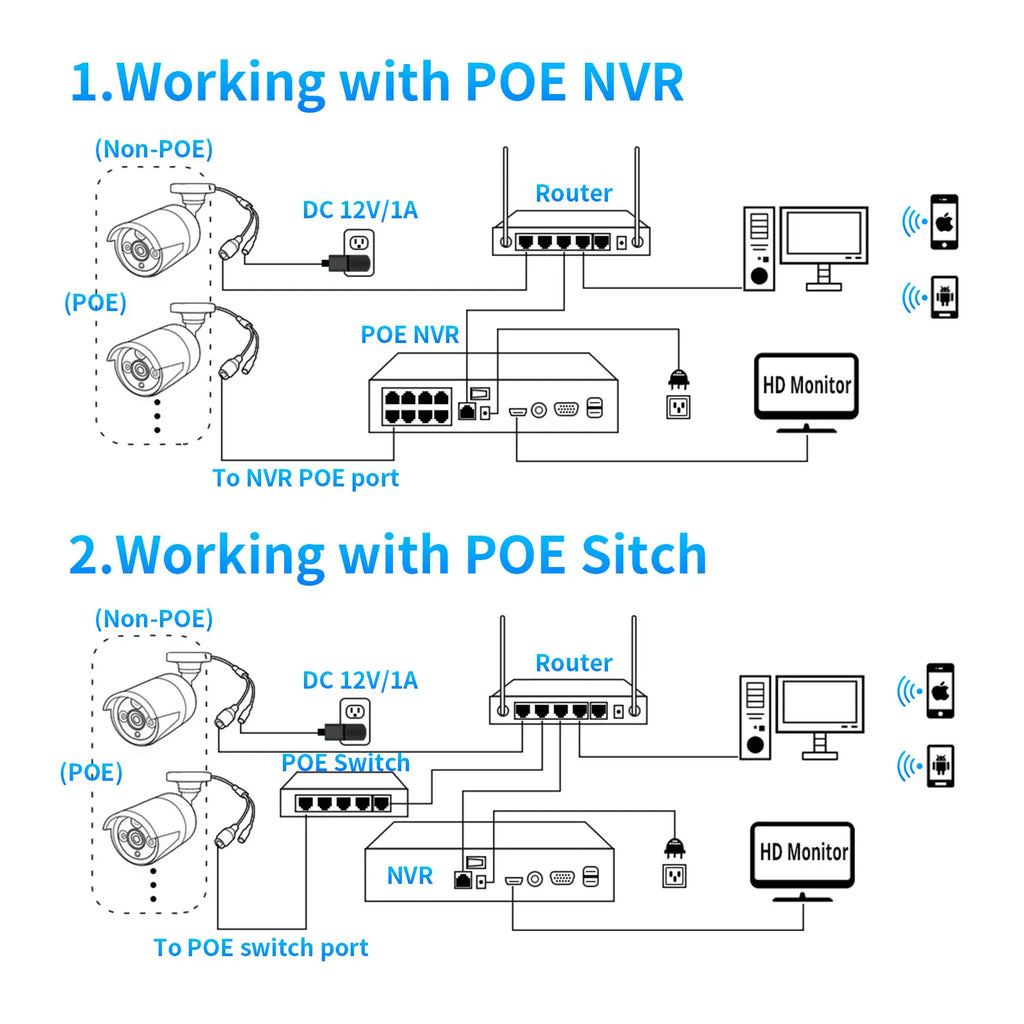

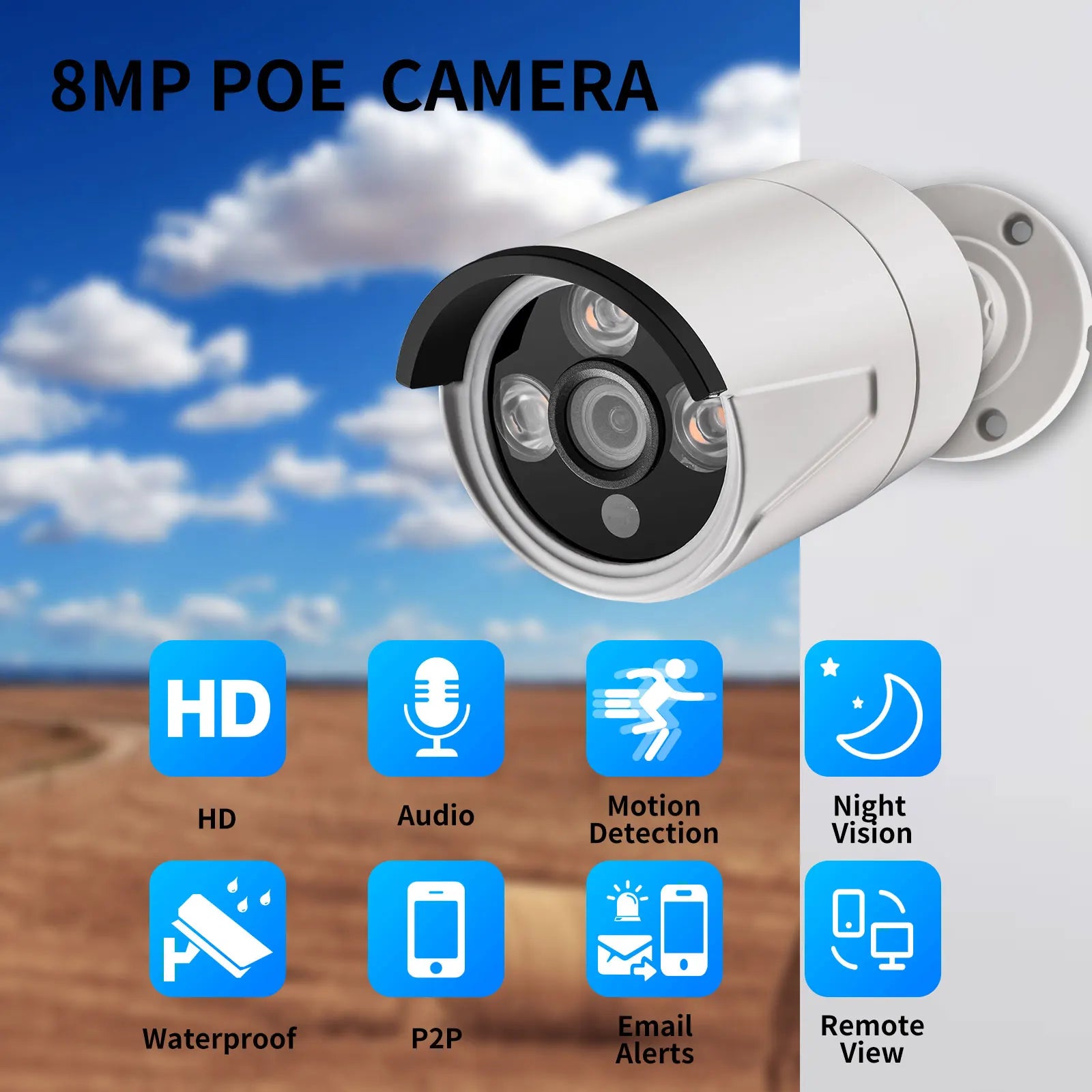

POE48V And DC12V For Optional

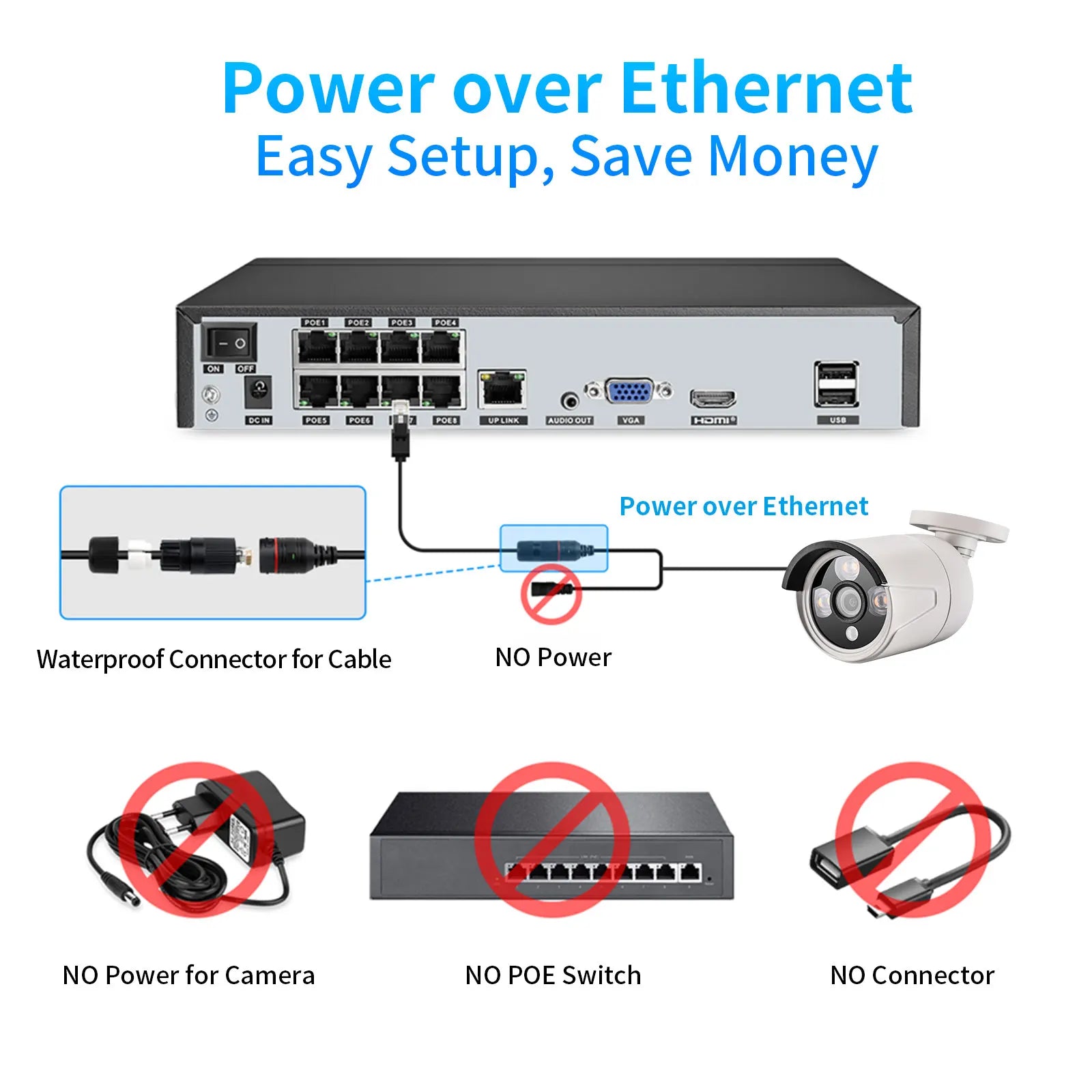

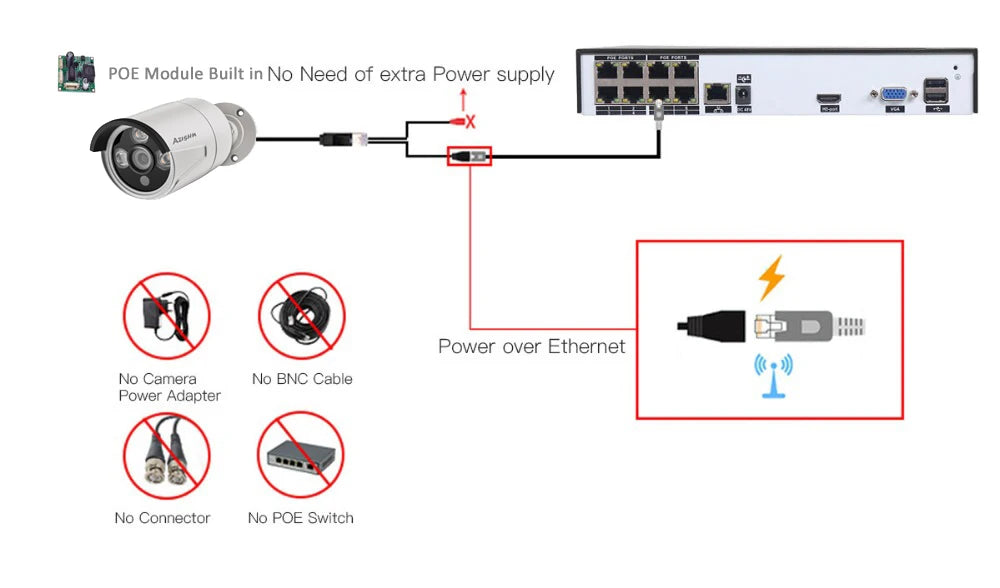

POE48V version :POE Advantage, Why Choose POE ?
Don't need extra power cables or adapters or switch.Plug And Play and easy setup.

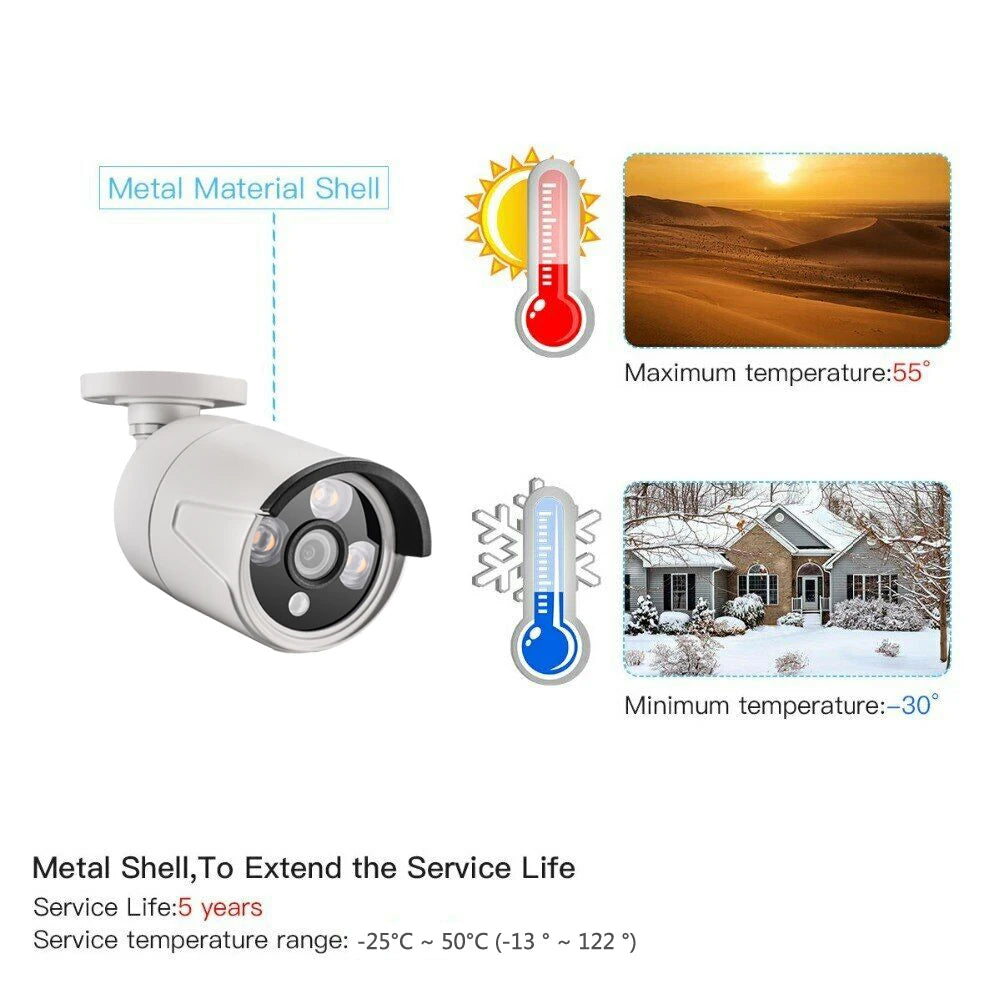

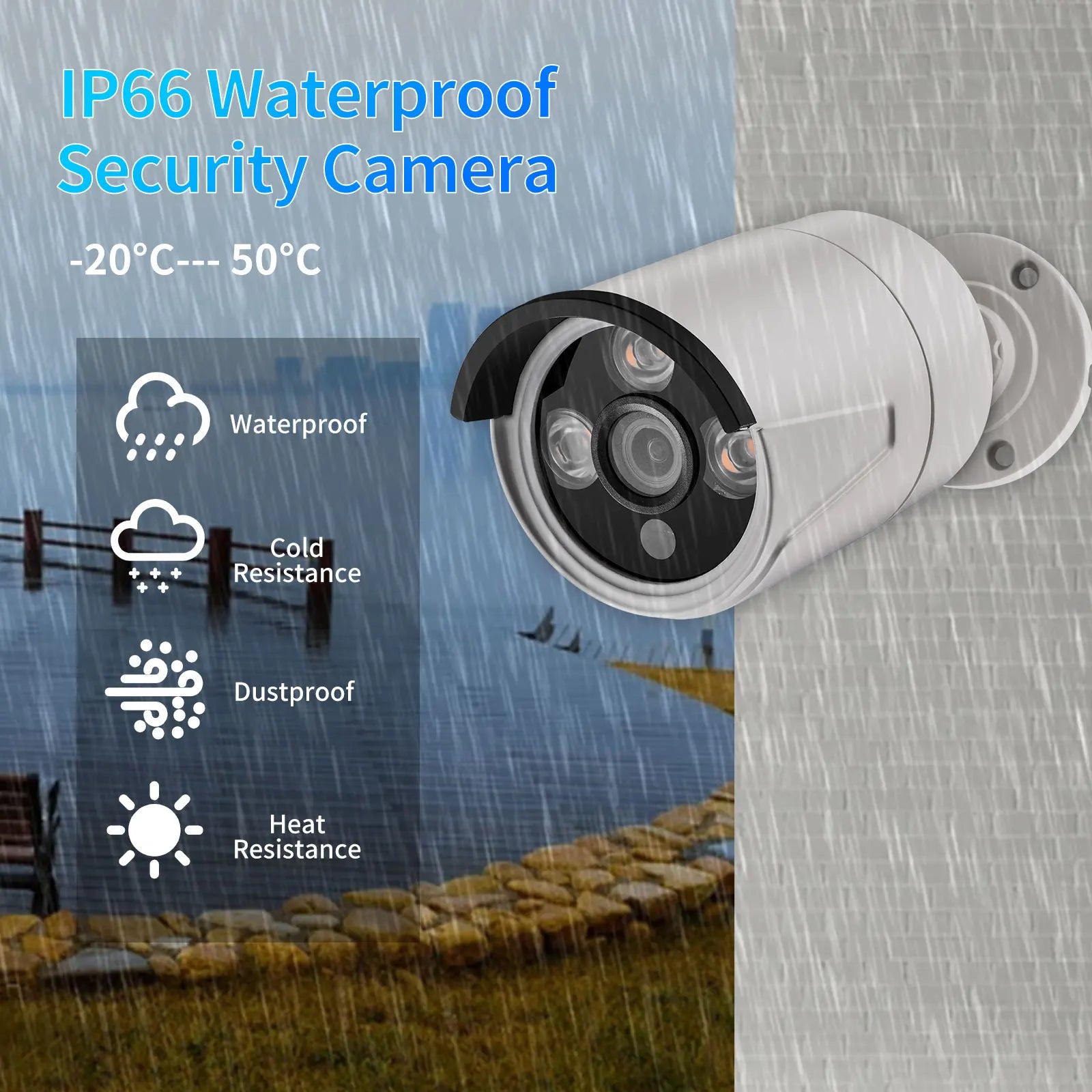

Metal housing shell IP66 weatherproof Security Cameras,widely used for indoor / outdoor

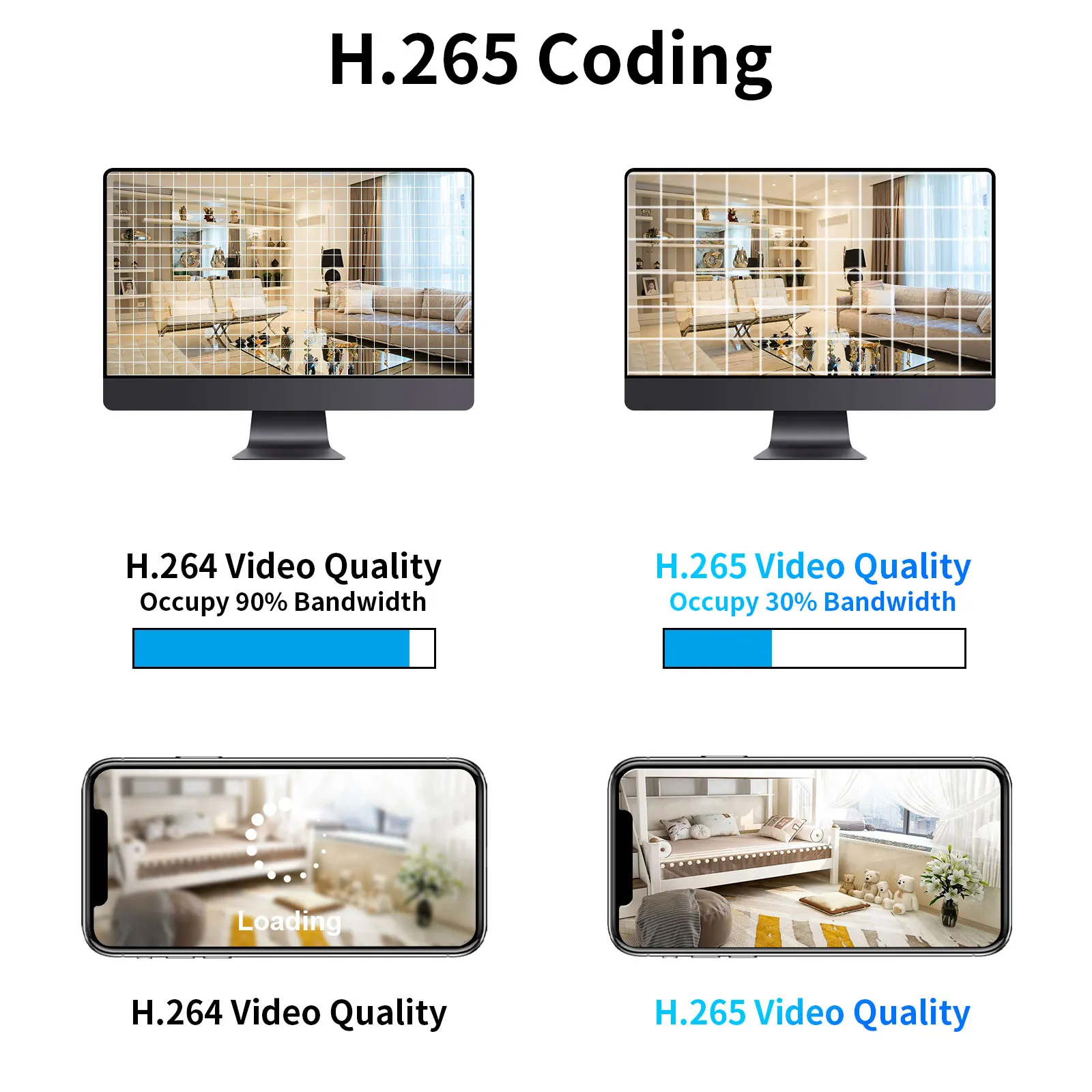

H.265 Advantage
Reduces file size up to 70% with the same quality. save 70% or more bandwidth
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264.That means that
